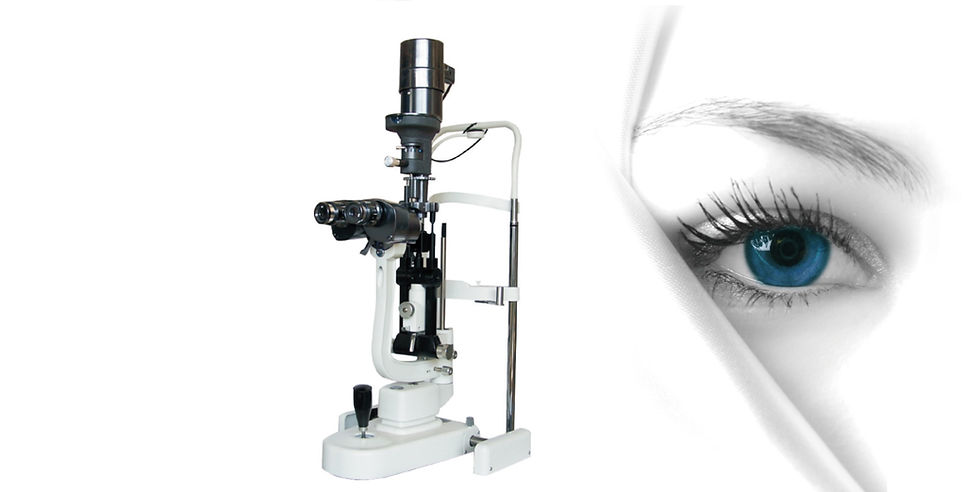

Slit Lamp A
Imported Schott optics from Germany reduces optical distortion ,
increases clarity and depth of focus

Parameter:
Eyepiece:10x and 16x
Magnifications(field of view):10x(φ18mm)、16x(φ14.5mm)、
16x(φ11.25mm)、25.6x(φ9mm)
Pupil distance:10x eye piece 55mm~82mm,16x eye piece 51mm~78mm
Diopter adjustment:10x eye piece ±8D,16x eye piece ±10D
Slit width:0mm~9mm adjustable(slit is round when the slit width is 9mm)
Slit height:1mm~8mm adjustable
Slit angle:0°~180° adjustable
Slit inclination:5°,10°,15°,20°,four steps adjustable
Diameter of light spot:φ9mm、φ8mm、φ5mm、φ3mm、
φ2mm、φ1mm、φ0.2mm
Filter:heat absorption、grey、redfree、cobalt blue
lllumination bulb:12V/30W halogen bulb
Input voltage: AC 220V±22V,AC110V±11V
Electrical safety standard:executive standard:IEC601-1,class I,type B
Dimensions(packing):720mm(L)x
495mm(W)x480mm(H)
Weight(packing):24kgs
Optional accessories:R type,T type,applanation tonometer、
measuring eye piece、trihedron lens 、gonioscope、funduscope、
aspheric lens
At the time of buying Slit Lamp discount $50 for Instrumental table
